Description

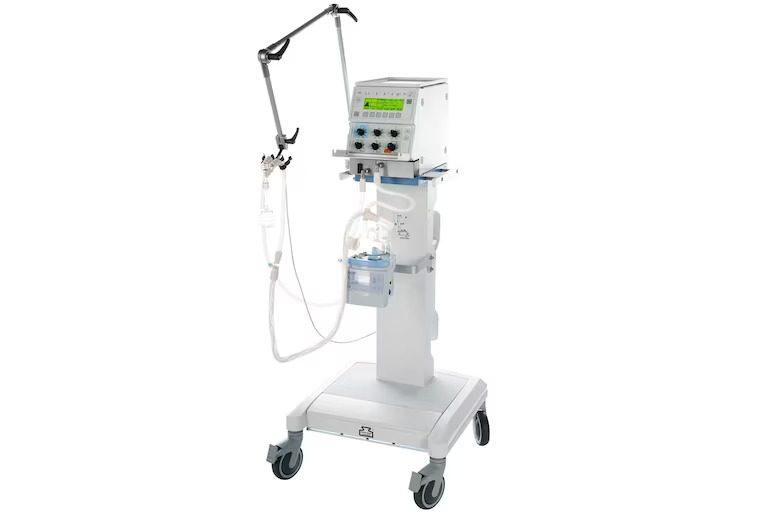

Drager Babylog 8000 Plus Features The Drager Babylon 8000 plus?offers Non-invasive respiratory support for Neonatal patients, including premature babies, newborns, and infants with a weight up to 44lbs (20 kg). The Babylog was designed for harmonious ventilation which is a platform that can adapt to the necessary needs from spontaneous breathing to changes in lung conditions. The Drager Babylon 8000 plus is a high-frequency ventilation system, that can provide CPAAP and IMV modes. The system can monitor inspiratory oxygen concentration, airway pressure, flow, tidal volume, and breathing rate. The patient’s data can be transferred from the ventilator to either a patient monitor or a central monitoring station. Can be used on Neonatal and Pediatric patients under the weight of 44 lbs or 20kg Allows for optimal levels of spontaneous breathing The Volume Guarantee (VG) features combine the advantage of pressure and volume-controlled ventilation An integrated airway monitoring system that can display waveforms of pressure and flow Drager Babylog 8000 Plus Specifications Dimensions Height: 12.5 In (31.8 cm) Width: 8.4 In (21.5 cm) Depth: 15.2 In (38.5 cm) Weight: 32 lbs Controls Control principle Continuous flow, pressure-limited,time-cycled Conventional ventilation IMV/IPPV, CPAP Triggered ventilation IMV, SIPPV, PSV1), Leak adapted Trigger Flow/volume trigger, Leak adapted Trigger delay approx. 30 ms High Frequency Ventilation1) 3) CPAP+HFV, IMV+HFV Frequency 5 to 20 Hz Volume Guarantee Ventilation1) SIMV+VG, SIPPV+VG, PSV+VG Oxygen mixer loss (bleed flow) 0 (zero) L/min
